Torch Pro mounting options

[Vent_O_Later]

I'm just wondering how you guys are mounting your Torch pro's to your weapon.

I tried the mount supplied with the kit, but there is no way to adjust windage and elev. to correlate with scope veiw when beam is focused tight. Its mounted on the top ring of a burris pepr mount, just looking for some options, thanks

Awesome illuminator by the way, thanks TNVC!



[Vent_O_Later]

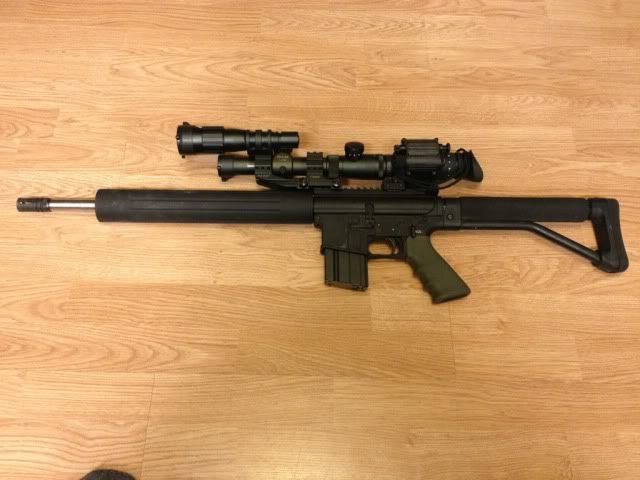

Here's a pic of the setup



[Jason El Paso]

your set up looks nice.



[kyle crickenberger]

You could put a rail on your float tube and mount it there I think it will get the hot spot as close to center as possible



[Vent_O_Later]

Thanks for the coments guys.

I have another float tube with small side rails on the front but its on a 6mm WOA at the moment, was going to use that rifle for a night rig but its to dang heavy (22" barrel) after getting used to a 16" recon profile barrel, the heavy ones just seem like a pain to lug around.

I'll do the swap around when I get home from work...pics to come.



[Shurshot]

if you can still buy the older model ELR Torch-V Variable Infrared Illuminator, it has the windage and elevation adjustments on it as you can see in this picture. I adjusted mine to where the beam matched the field of view in my scope.

this is what I have
http://nvec.tnvc.com/shop/elr-torch-varialbe-infrared-illuminator/

this looks like it may be available
http://www.optics4birding.com/morovision-elr-pro-ir-illuminator-805nm.html



[Vent_O_Later]

Got some time today so I did some parts swapping, here's what I came up with.

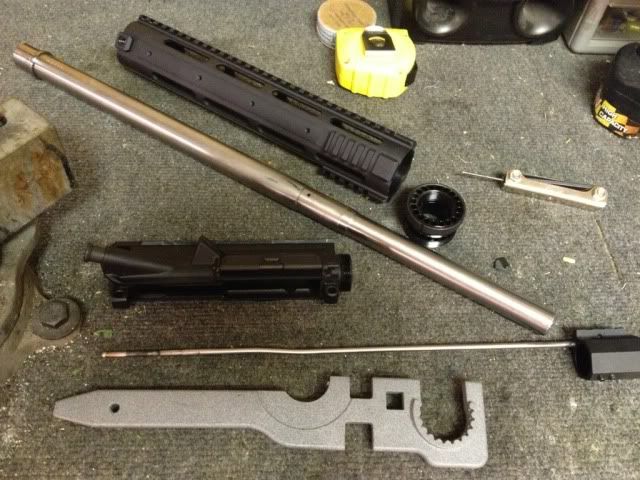

6mm WOA torn down for parts swap, had to steal barrel nut and float tube

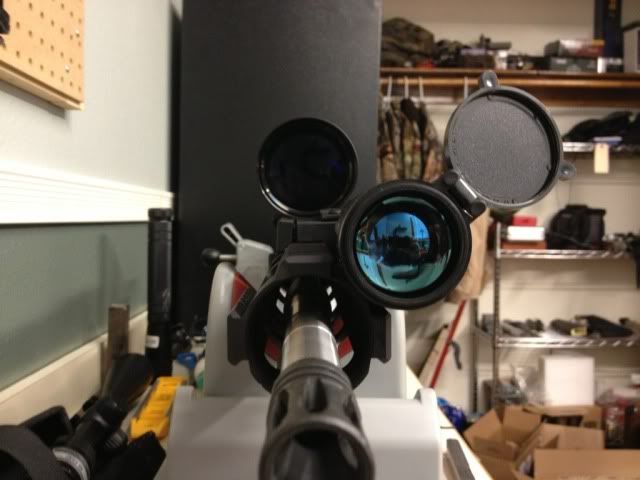

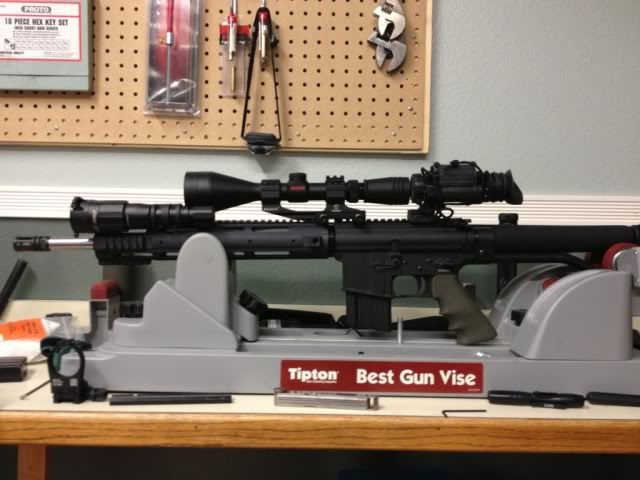

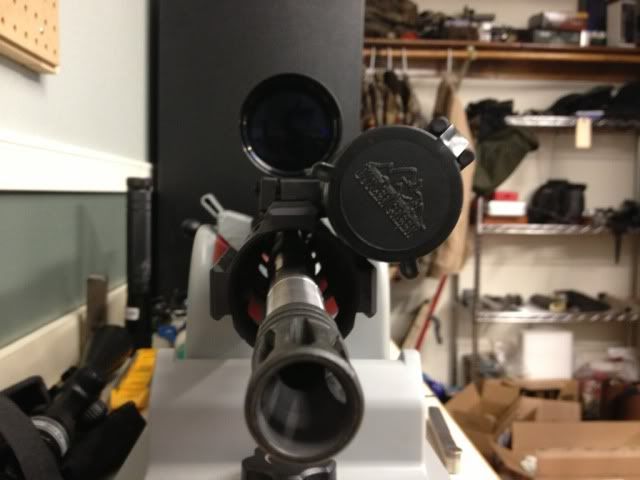

After tear down of the original 6.8 setup and reassembly, I tried to keep it as compact and user friendly as possible.

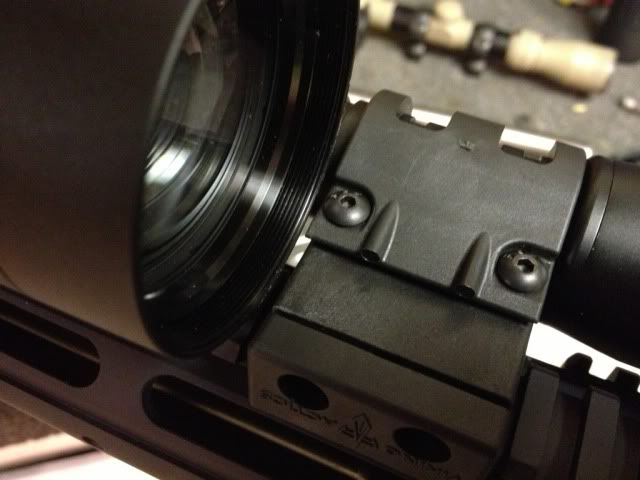

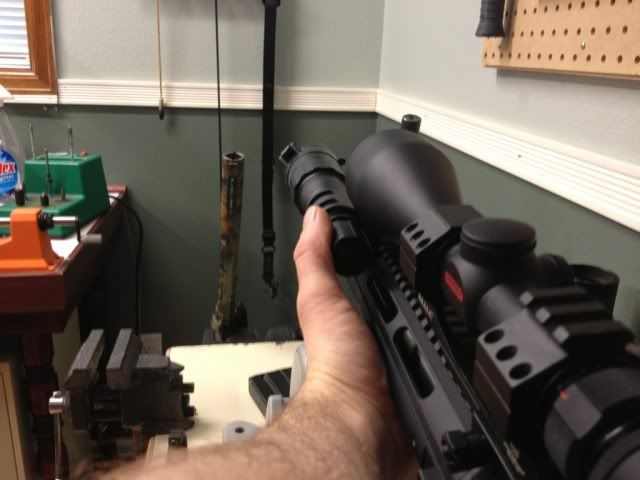

With the position of the torch, it is easily manipulated with the off hand and out of the way of sticks or bipod, as compact as I could get it and as close to the scope as possible. When I mounted the Torch in its mount, I paid close attention to the lens end while tightening, I found that you can adjust your elev. and windage by how tight and order of tightening your mount screws.

I'll let you know how it turns out once I get it sighted in and out in the field.



[6mm06]

Vent-O-Later,

What day-time scope did you have mounted in the first (top) photo? It looks a bit more compact and seems to not push the NV scope back too far.



[Pa. Mick]

Those weapons look pretty awesome! I ( almost ) feel sorry for those song dogs . Ha ha ha. Nice rigs guys.



[Vent_O_Later]

Originally Posted By: 6mm06
Vent-O-Later,

What day-time scope did you have mounted in the first (top) photo? It looks a bit more compact and seems to not push the NV scope back too far.



That was a Hi-Lux 1x4x30mm, wanted some more light so I swapped it out for the 50mm obj.



[SkyPup]

Nice setup!



[Mvill]

Nice looking set up.. Thanks for info
