dove & woodpecker / remote controlled/W/ PARTS & WIRING/ADDED CHARGING PORT

STUMP49

STUMP49

New member
Now all I have to do is get out and use them.

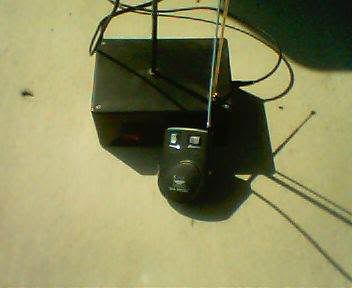

Box and remote



Expedite Dove


Expidite Woodpecker


PARTS AND WIRING.

1. YOUR R/C BOARD
2. 274-248 panel mount mono 1/8 phone jack...(2)
3. 275-690 on-off switch...(1)
4. 270-386 d battery tray...(2)
5. your decoy
6. 270-1806 project box...(1)
7. 42-2387A cable...(1)
8. 278-1610 heat shrink tubing.....I used this instead if elertic tape.

I used a carbon arrow w/ 1/2 inch dowel rod to mount the decoy.

Plastic tube for the antenna should come on the car.

velcro stick back...at walmart...90973 or the last 5#s on the upc code. You need this to stick the two dD battery trays to the side of the project box.



I added a charging port so I can use a wall charger to recharge my rechargeable batteries.
So now I wont have to take the cover off.

Part I used for my charger was radio shack
Size M panel mount coaxial DC power jack....274-1563







Last edited:
Great idea to conserve battery life. /ubbthreads/images/graemlins/grinning-smiley-003.gif I can just picture a coyote tackling that dove decoy...it looks like a winner.

Tony

If you copied the wiring dont use it. I copied the wrong one.

The right one is now posted .....sorry about that....stump

I added a charging port so now I can use rechargeable batteries and I can charge them right in the box.
If you look under the wiring diagram the info is there.
